Question
It is possible to trigger the Gocator via Ethernet?
Answer
Yes, you can trigger the Gocator by sending a software trigger command from the SDK or by a software trigger command over an industrial protocol (Modbus, EthernetIP, Profinet or ASCII). Prior to sending the software trigger command, the sensor must be running.

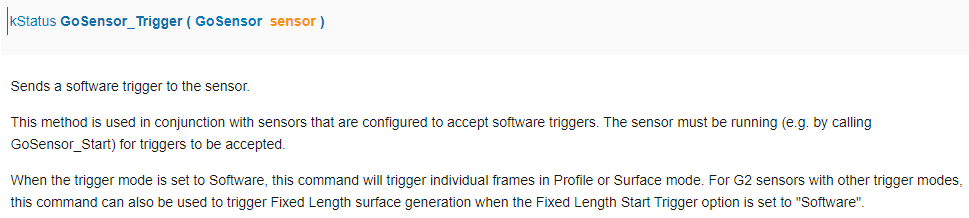

- Trigger via SDK: use the GoSensor_Trigger() function.
See html manual under GoSDK/doc folder - Trigger via Modbus: send command 7 (software trigger). Byte0 in the Control Register.
https://d3ejaiy6gq5z4s.cloudfront.net/manuals/gocator/gocator-6.1_6.2/G2/Default.htm#Protocols/ModbusTCPProtocol/Registers/ControlRegisters.htm - Trigger via EthernetIP (explicit messaging): send command 7 (software trigger). Byte0 in the Command Assembly.
https://d3ejaiy6gq5z4s.cloudfront.net/manuals/gocator/gocator-6.1_6.2/G2/Default.htm#Protocols/EtherNet_IPProtocol/AssemblyObject(Class0x04)/CommandObject.htm - Trigger via EthernetIP (implicit messaging): send command 7 (software trigger). Set bit7 of byte0 in the Command implicit messaging assembly.
https://d3ejaiy6gq5z4s.cloudfront.net/manuals/gocator/gocator-6.1_6.2/G2/Default.htm#Protocols/EtherNet_IPProtocol/AssemblyObject(Class0x04)/ImplicitMessagingCommandAssembly.htm - Trigger via Profinet: send command 7 (software trigger). Byte0 of the control module.
https://d3ejaiy6gq5z4s.cloudfront.net/manuals/gocator/gocator-6.1_6.2/G2/Default.htm#Protocols/PROFINETProtocol/PROFINETProtocol.htm - Trigger via ASCII: send command "Trigger"
https://d3ejaiy6gq5z4s.cloudfront.net/manuals/gocator/gocator-6.1_6.2/G2/Default.htm#Protocols/ASCIIProtocol/ControlCommands/Trigger2.htm
NOTE: The Gocator can only be triggered via one method in each configuration (e.g., by the internal clock at the maximum or a defined frame rate, that is, "free-running"; by encoder; by digital input; or by software trigger).
