Sensor Model | G2xxx or G3XXX |
Firmware Version | 6.x, GoPxL |
SDK Version | n/a |
GoAddOn Firmware Build

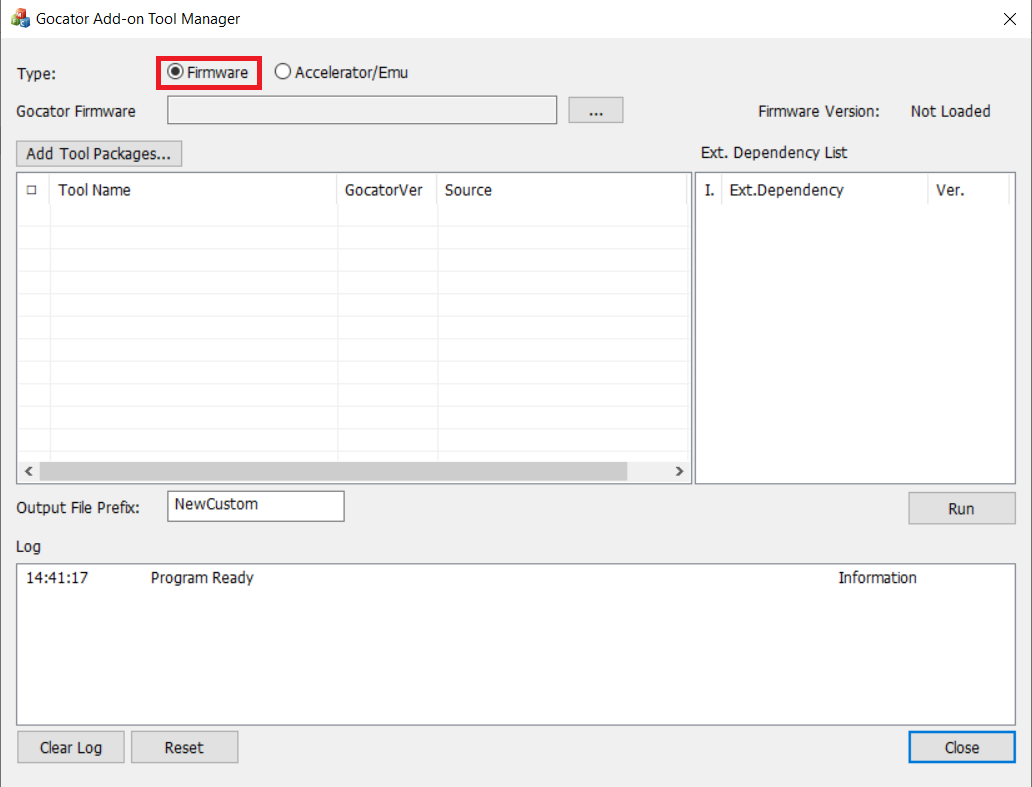

Choose this option if you would want to use the beta tool/s on a sensor. This option will be selected if the tool needs to execute on sensor or on GoMax. Select “Firmware” for type.

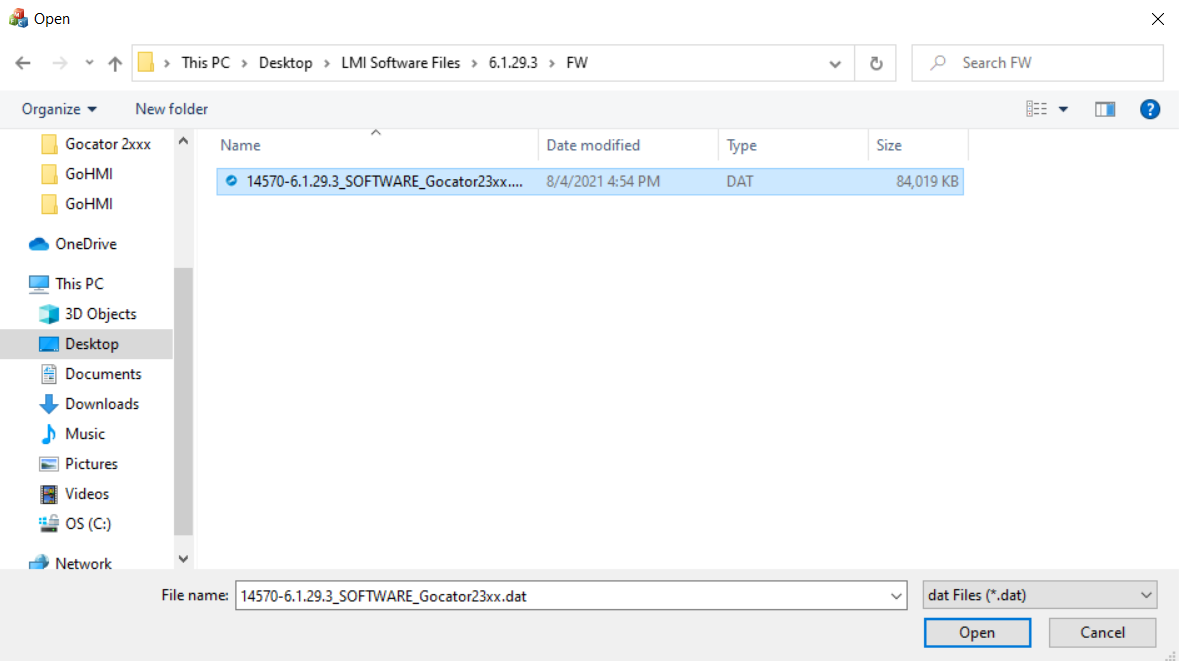

Next click the “...” button and find the sensor firmware (.dat) file.

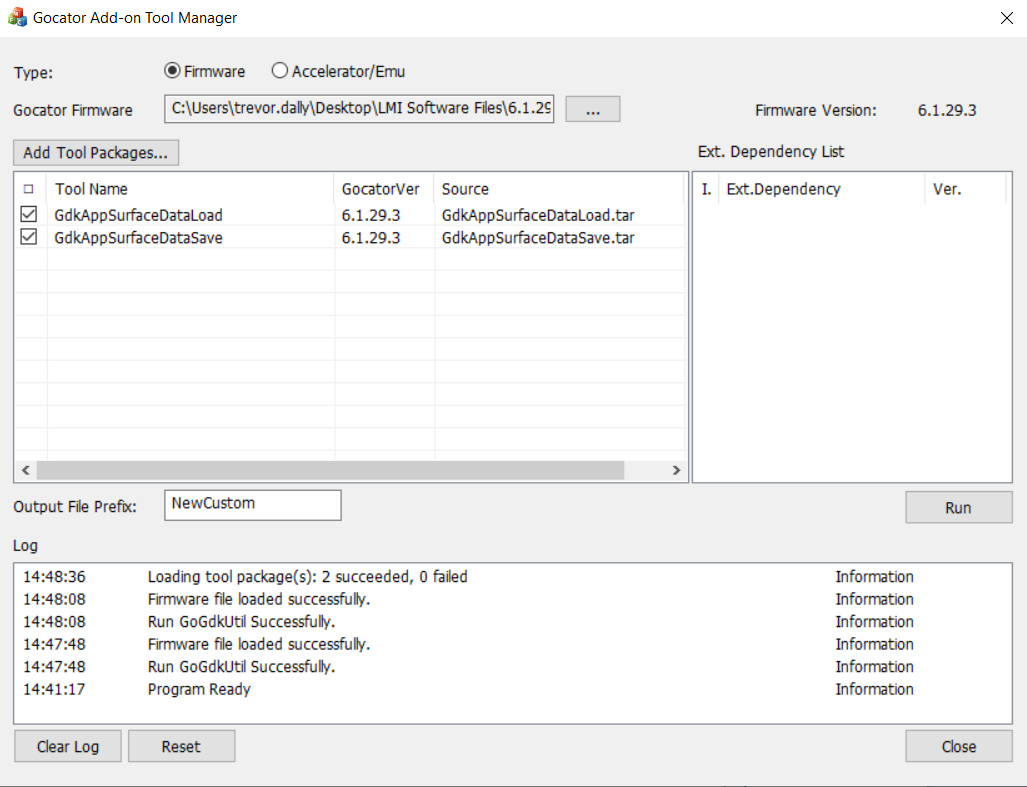

Once the file is selected, you can choose the tool packages you would like to add by selecting the “Add Tool Packages…” button and navigating to the desired .tar package. Make sure the referenced packages have a checkmark on the left of each package or it will not be installed. GoAddOn should look similar to the image below.
Select the “Run” button, and the dialog box should appear saying “Firmware file was created successfully”.
Load the firmware file into the sensor and/or GoMax, and the beta tools will be available for use.
GoAddOn Accelerator/Emulator Build

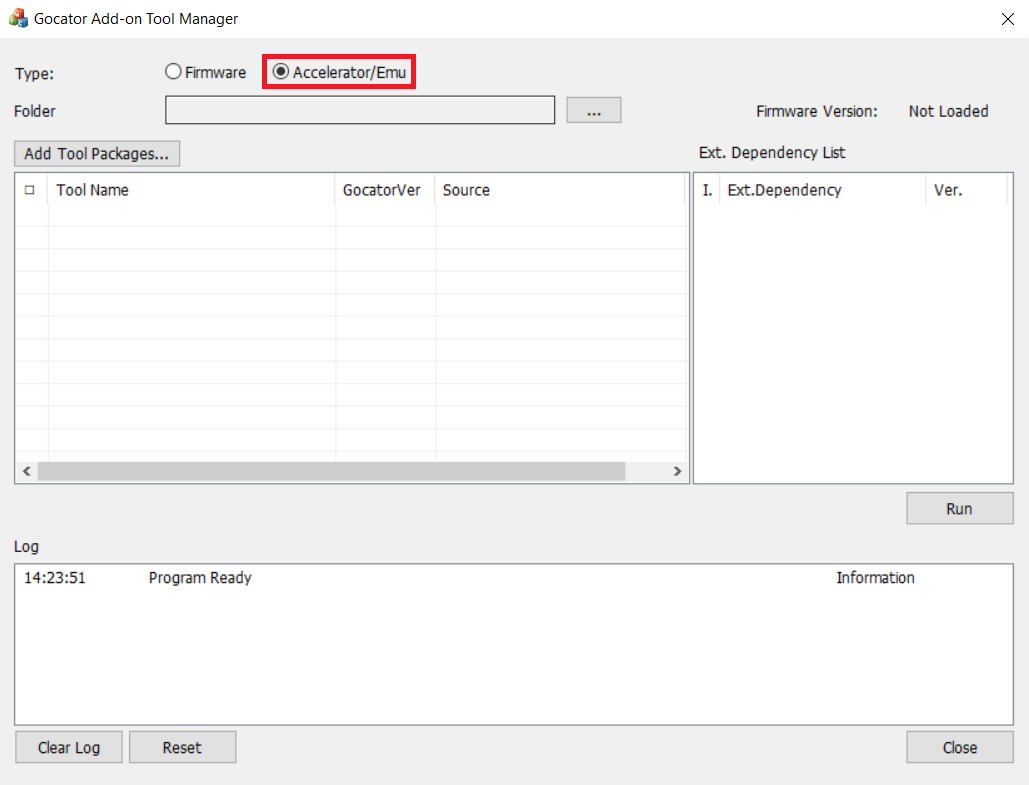

Choose this option if you want to use the beta tool/s with a PC accelerated sensor or emulator. Select “Accelerator/Emu” for type.

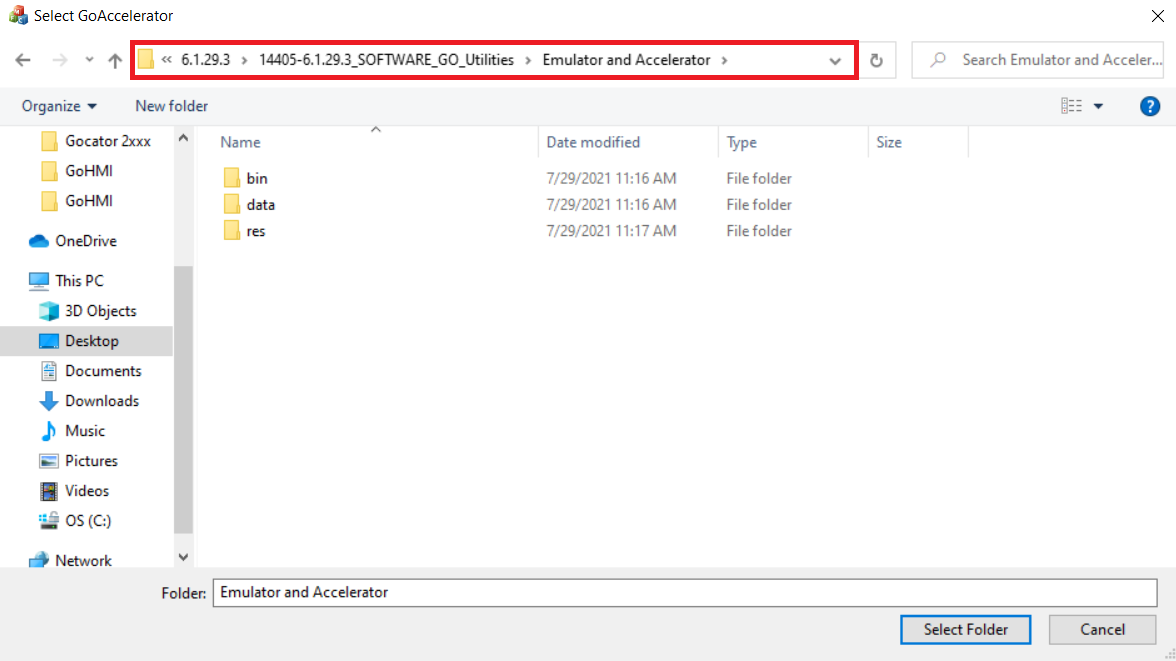

Next click the “...” button in the folder section and select the folder containing the emulator and accelerator. If the correct directory is not chosen, you will receive an error. An example of the proper directory is shown below.
Once the file is selected, you can choose the tool packages you would like to add by selecting the “Add Tool Packages…” button and navigating to the desired .tar package. Make sure the referenced packages have a checkmark on the left of each package or it will not be installed. GoAddOn should look similar to the image below.
Select the “Run” button, and the dialog box should appear saying “Firmware file was created successfully”.
The emulator or PC accelerated sensor should contain the tools now.
