How do I Change Jobs Using GoHMI?

To change jobs using the GoHMI environment, for example when clicking a certain button, you should make use of the UI-action call.

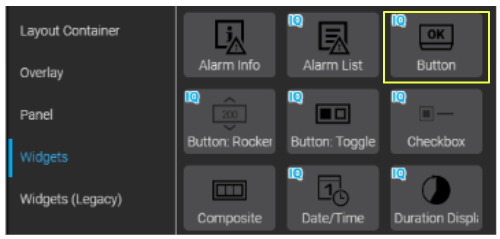

First add a button widget to your panel.

Then click this button and navigate to "UI-actions" under "config".

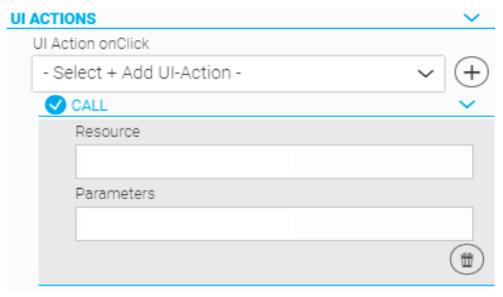

In the "UI Action onClick" dropdown menu, select "CALL" and fill in the empty "Resource" and "Parameter" field.

An easy way to check which UI-action you should select and what you should fill in is to make use of the DevTools panel in Chrome. Just follow the next steps:

1. Open GoPxL in a Chrome browser and click F12. The right side of the browser will show the DevTools panel.

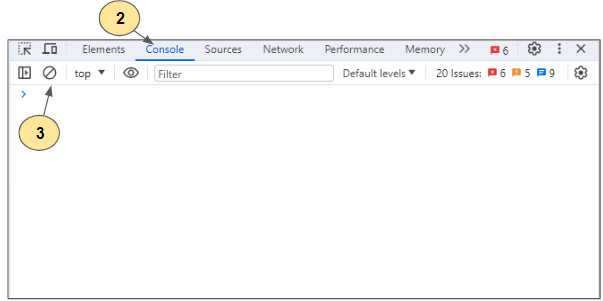

2. Navigate to the Console tab in the DevTools panel
3. Clear the Console




4. Perform an action in GoPxL. In this case, load a different job.

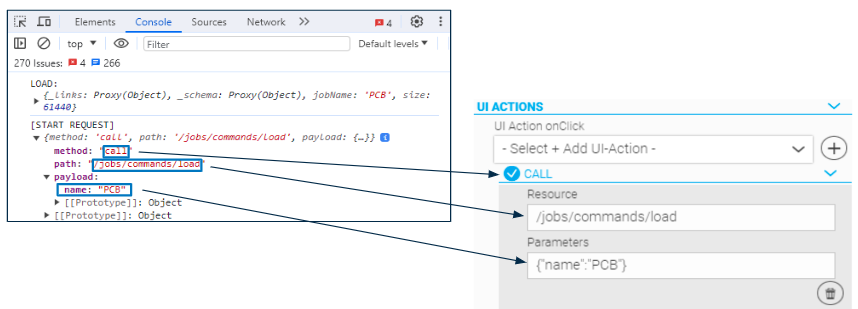

5. The logged request in the console shows you a method, path and payload which you need to use as input for your UI-action.
