Maximum number of frames that can be stored on a Gocator sensor

Question

What is the maximum number of frames that can be stored on a Gocator sensor?

Answer

The maximum number of frames depends on the size of data for each frame.

You can roughly estimate the number of frames that can be saved by first calculating the size of each frame:

• Use 2 bytes per range point for resampled profiles (Uniform Spacing is checked) or surfaces, 4 bytes per range point for raw profiles (Uniform Spacing is unchecked).

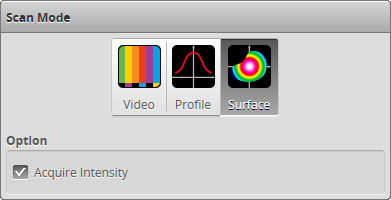

• Add an additional 1 byte per intensity range point if Acquire Intensity is enabled on the Scan page.


•

The maximum size for recorded data are as follows for different Gocator revisions and accelerator versions:

G2300A revision: 64 MB
G2300C/D revision: 256 MB
G2400/G2500: 256MB
G3200/G3500: 64MB
Windows accelerated 32-bit: 512 MB
Windows accelerated 64-bit: 4 GB
GoMax accelerated: 300 MB
