Importing the Gocator EDS in Studio 5000 V36: Troubleshooting Import Errors

Question: How do I import the Gocator EDS in Studio 5000 V36 if an importing error occurs?

Example Error Messages:

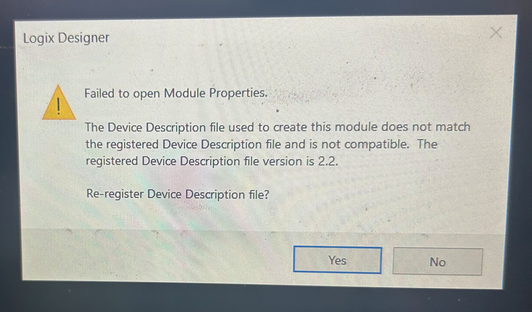

• "Logix Designer failed to open module properties. The device description file used to create this module does not match the registered device description file and is not compatible. The registered device description file version is 2.2. Re-register device description file?"



Answer: If you encounter issues while importing the Gocator EDS file in Studio 5000 V36. This is a known bug associated with this version of Rockwell Software. Below are some workarounds and steps to help you resolve the issue.
Workaround Steps:

• Create an L5X File in V35 or Download the V35 L5X from the Provided Link:

  • Use Studio 5000 V35 to create a module with the EDS file installed.
  • Save this module as an L5X file.
  • Download Link: V35 L5X File

• Import the L5X File in V36:

  • Open your project in Studio 5000 V36. Open an Additional Studio 5000 V36 window.
  • Navigate to the “File” menu in the top left corner.
  • Select “Open” and then choose “EDS_V35.L5X File.”
  • Click “Open” to begin the import process.
  • Once opened, Go to the Ethernet Module and Right-click on the GXXXX G2410 and click Copy
  • Go to the desired project and paste the Ethernet Module

Additional Notes:

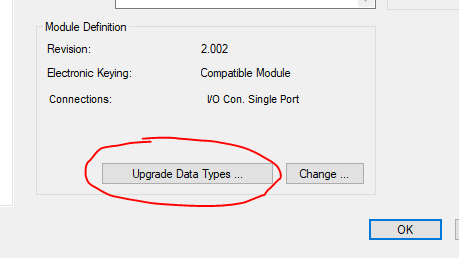

• Another suggestion to resolve this issue as stated by Rockwell is to "Upgrade Data Types,"




  The solution is to install an AOP update from Rockwell. To install this update:

  1. Open the Product Compatibility & Download Center (PCDC) 4 web page.
  2. Search for one of the following analog modules: 1756-OF8, 1756-OF4, 1756-IF8 or 1756-IF16.
  3. Select the latest series/firmware for the module, and proceed to Downloads.
  4. Use the Select Files option to view all available downloads for the select module.
  5. Download the item AOP - Add On Profiles for 1756 Analog1 v40.14.70.
  6. Extract the files and run the installation. A reboot will be required after the install complete.

Reference:

For more information on this known issue, please refer to the following Rockwell Automation support article: Rockwell Automation Support.
